RTC360 automatic labeler
Self-adhesive labels on cylindrical, tapered and flat containers
The RTC360 applies self-adhesive labels around cylindrical, tapered or flat containers, with front and back labels, accuracy of up to 1 mm and up to 40 m/min. With PLC and HMI, it standardizes application, reduces human error and label waste, and adapts to different product formats.
- Application accuracy of up to 1 mm
- Up to 40 m/min
- 7" color HMI and electronic label sensor
- NR-12 (Brazilian machinery safety standard), ABNT NBR 5410 and IP65 protection
What is an automatic labeler
An automatic labeler is a machine that applies self-adhesive labels to bottles, jars, containers and jugs without operator intervention. The product moves along the conveyor, the sensor detects its position and the labeling head applies the label around the container or on its front and back faces, always at the same point, with accuracy of up to 1 mm.
35 years of manufacturing · 60,000+ machines delivered · ISO 9001:2015 · engineering and manufacturing in Ourinhos (São Paulo, Brazil)
To label boxes and packages on a conveyor, see the label applicator. To inspect and rewind label rolls, the automatic rewinder. For the optional printer, the ribbons.
What changes on your line
Label in the right position
Accuracy of up to 1 mm, with an electronic sensor that reads the labels.
Less waste
Automatic application reduces label waste and rework caused by crooked labels.
Less human error
Labeling no longer depends on the operator and stays standardized on every shift.
Several formats
Adjustments for cylindrical, tapered and flat containers, with side, top or bottom application.
Technical specifications
| Application | self-adhesive labels, with front and back labels · cylindrical, tapered or flat containers · side, top or bottom application, with or without printer |
|---|---|
| Accuracy | up to 1 mm |
| Output | up to 40 m/min |
| Label roll width | 10 to 115 mm |
| Control | PLC and 7″ color HMI · electronic label sensor |
| Utilities | 220 V, 60 Hz · compressed air at 6 bar (8 bar on the labeler for sausages and cold cuts) |
| Structure and standards | AISI 304 stainless steel or carbon steel · NR-12 and ABNT NBR 5410 · IP65 |
| Dimensions | 2,692 x 1,417 x 1,948 mm (L x W x H), adaptable to the project |
| Options | printers, daters, spacers and accumulation table |

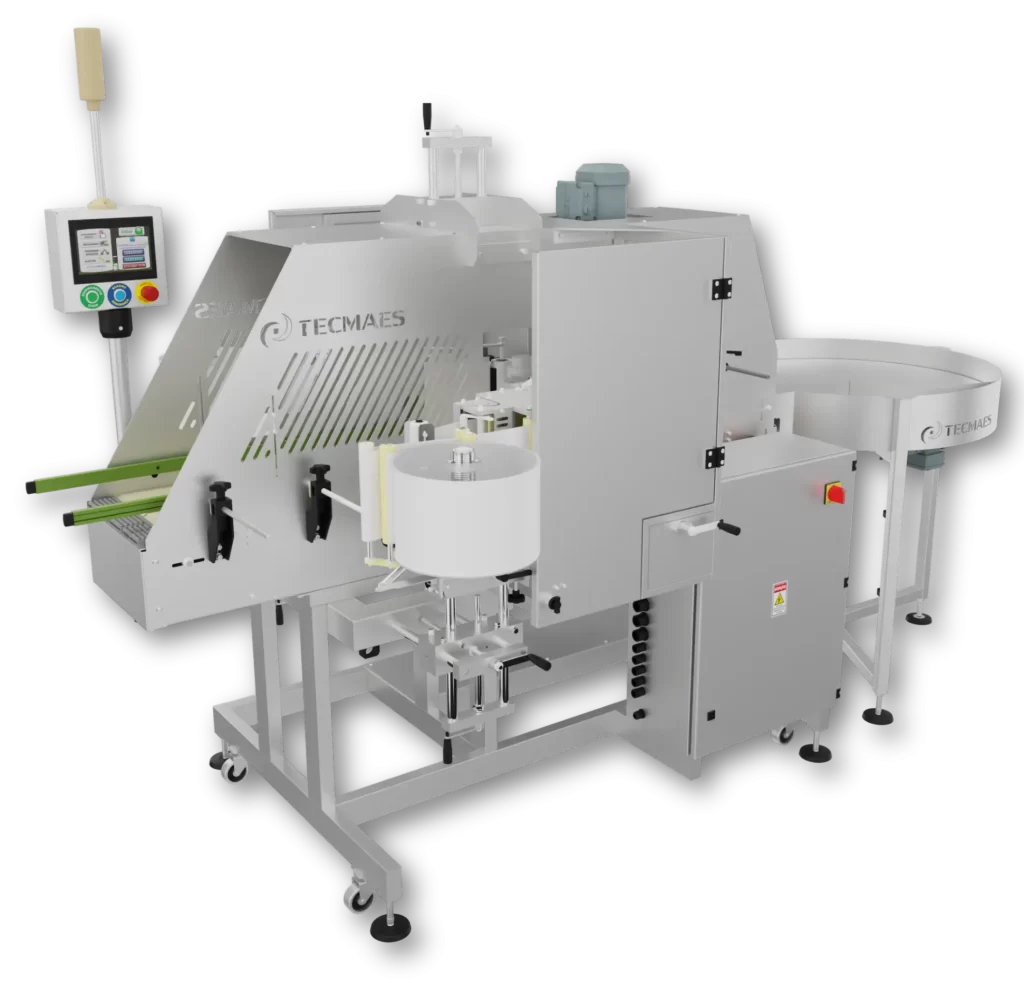

RTC360 labeler
Front and back labels
Developed to automate the labeling line, the RTC360 has adjustments for a wide range of products, from front and back labels on flat containers to wraparound labels on cylindrical ones. It accepts printers, daters and spacers to complete the line.
- Up to 40 m/min with accuracy of up to 1 mm
- Label rolls from 10 to 115 mm wide
- Optional accumulation table at the outfeed

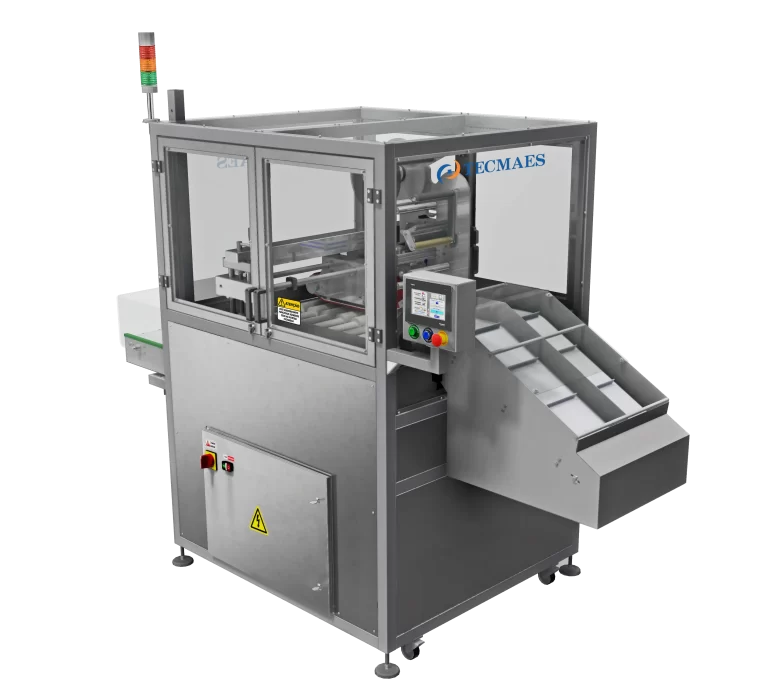

Labeler for sausages and cold cuts
Cylindrical and flat products
To automate and standardize the labeling of sausages and cold cuts, with adjustments that adapt to different formats and sizes. It applies wraparound labels on cylindrical products and top labels on flat products.
- 1 mm accuracy
- Up to 50 m/min · compressed air at 8 bar
- Options: dater, inkjet printer and spacer
See the labelers in operation
RTC360 automatic labeler
Labeler for sausages and cold cuts
Solutions by product
Jugs and drums
Labeling of jugs and drums, with front and back labels.
Supplements
Labeling of supplement jars and bottles.
Cosmetics
Labeling of cosmetic bottles and packages.
Condiments, sweets and honey
Labeling of condiment, sweet and honey jars and bottles.
For faster lines or lines with buckets
Up to 12,000 bottles per hour for cylindrical products, with an optional reject system.
It closes the bucket and delivers it to the labeler on the same line, in continuous flow.
Frequently asked questions
What is the difference between the RTC360 and the rotary labeler?
The RTC360 handles cylindrical, tapered and flat containers, with front and back labels, at up to 40 m/min. The RTC360-12000 rotary labeler is dedicated to cylindrical bottles at high speed, up to 12,000 bottles per hour.
Does the labeler apply front and back labels?
Yes. The RTC360 applies front and back labels on flat containers and wraparound labels on cylindrical containers.
What label width does the RTC360 accept?
Label rolls from 10 to 115 mm wide.
Does the labeler print batch and expiry date?
Yes, with the optional dater or printer, which print the label before application.
What types of packaging does the RTC360 label?
Cylindrical, tapered and flat containers, such as jars, bottles, jugs and drums. Application can be on the side, top or bottom, with wraparound labels or front and back labels.
What is the difference between an automatic labeler and a label applicator?
The labeler applies labels around containers or on the front and back faces of packages. The label applicator applies labels on one face of boxes, trays and packages moving along a conveyor.
Can the labeler work in humid areas?
Yes. The RTC360 has IP65 protection, against dust and water jets, and can be built in AISI 304 stainless steel.
Does it need compressed air?
Yes. The RTC360 uses compressed air at 6 bar, plus 220 V, 60 Hz power. The labeler for sausages and cold cuts uses compressed air at 8 bar.
How do I request a quote?
Through the contact page. Tell us the product, the format and size of the container, the label dimensions and the required output.
